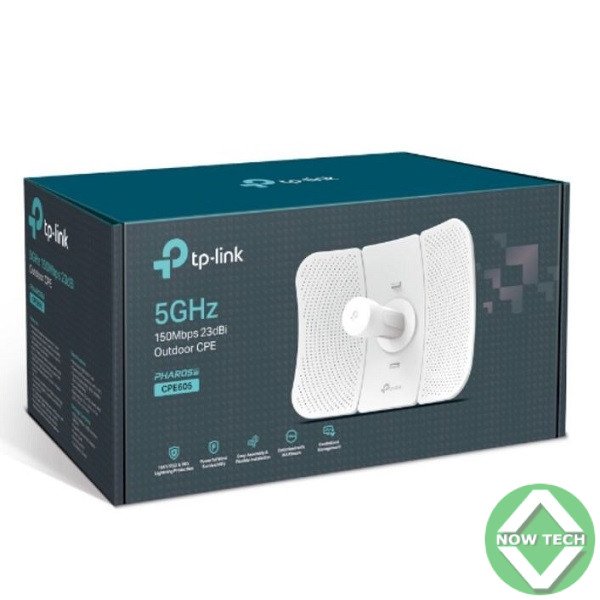

TP-LINK CPE605 5Ghz 300mbps 23dbi Outdoor antenna for sale

Networks and Communication

55,000 XAF XAF 130,000 XAF XAF

In Stock

Specifications

Directional antenna 23 dBi designed for long-distance point-to-point connections

5 GHz Wi-Fi with throughput up to 150 Mbps (300 Mbps theoretical)

Wireless range up to 20 km

Robust design water and dust resistant IP65 housing

Integrated protection 15 kV against ESD and 6 kV against lightning

Power supply PoE via LAN port 10/100 Mbps

Centralized management with PharOS interface and Pharos Control software

MAXtream technology to reduce latency and improve stability

Wi-Fi standards : IEEE 802.11a/n. We present you the Antenna TP-LINK CPE605 5Ghz 300mbps 23dbi Outdoor on sale, ideal for a powerful wireless connection.
Wireless flow :
- Up To 150 Mbps (40 MHz)
- 72.2 Mbps (20 MHz)
- 36.1 Mbps (10 MHz)
- 18.05 Mbps (5 MHz)
Supported frequency: 5.15 – 5.85 GHz (according to local regulations)
Emission power: max. 23 dBm, adjustable in steps of 1 dBm
Integrated antenna : Directional Cassegrain 23 dBi with metal reflector
Beam opening: 7° (azimuth), 10° (elevation)

Ethernet port : 1× 10/100 Mbps LAN/PoE (armored)
Power supply : Passive PoE via LAN (+4.5 pins; -7.8 pins), voltage 16–27 VDC

Range : up to 20 km in point-to-point transmission
Latency and stability: excellent beam directivity, noise reduction and better stability even in strong winds
Pharos MAXtream technology: improves throughput, capacity and latency

Security : WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), WEP 64/128/152 bits
Advanced protection :
- 15 kV ESD protection
- 6 kV protection against lightning
- Water and dust resistant IP65 housing
Management :
- PharOS web interface (HTTP/HTTPS)
- Software Pharos Control (centralized)
- SNMP v2c, SSH, Dynamic DDNS
- Integrated tools: spectral analysis, speed test, ping, traceroute, antenna alignment
